PRODUCTS

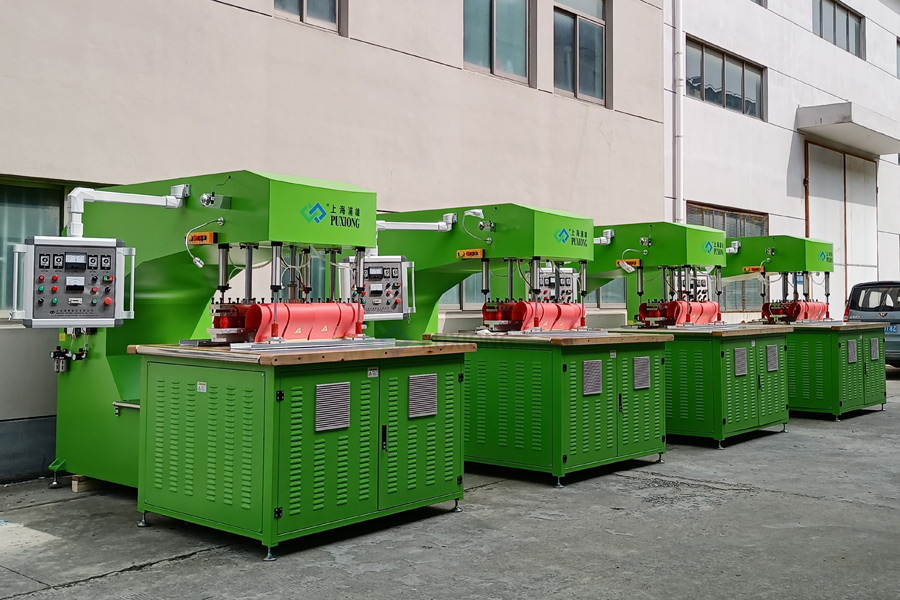

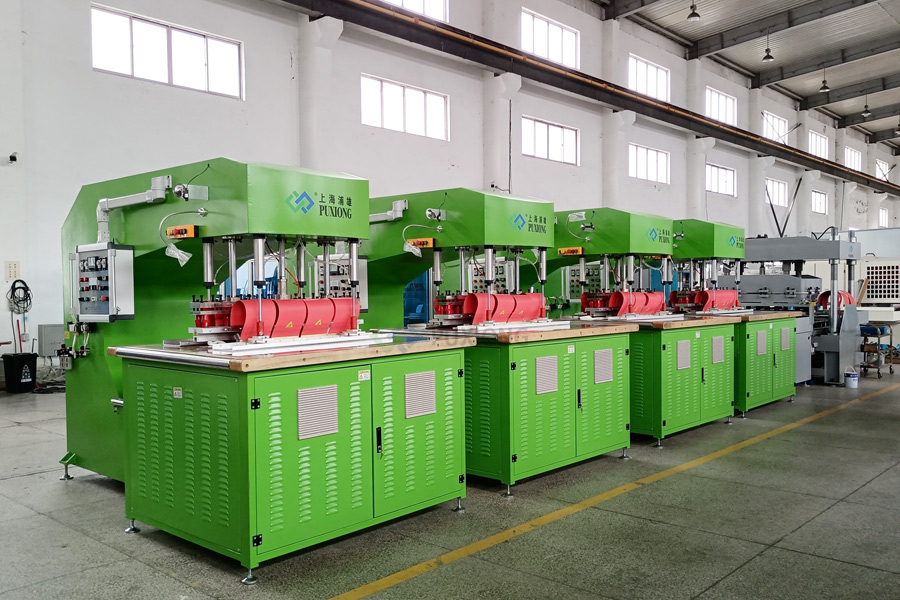

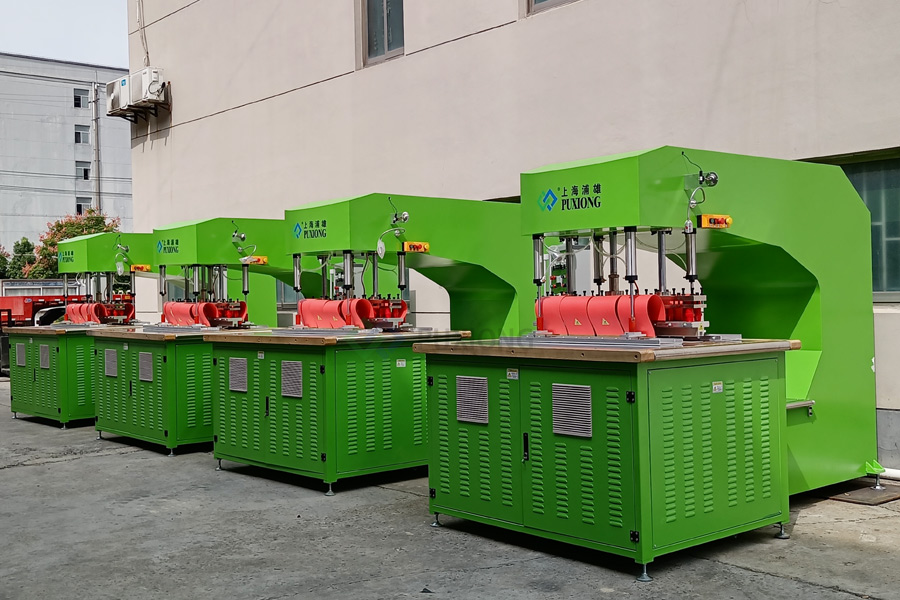

C Type HF/RF Welding Machine

Model: PXMS-C05M

  • C type high frequency tarpaulin welding machine
  • high frequency pvc welding machine ( c type )
  • c type high frequency canvas/tarpaulin welding machine
  • hf/rf welder with large throat depth
  • C type high frequency tarpaulin welding machine
  • high frequency pvc welding machine ( c type )
  • c type high frequency canvas/tarpaulin welding machine
  • hf/rf welder with large throat depth
Halls and Tents

Halls and Tents

1) Material: PVC/PVDF/PVF
2) PXMS-C05M can be used to weld halls and tents. Like

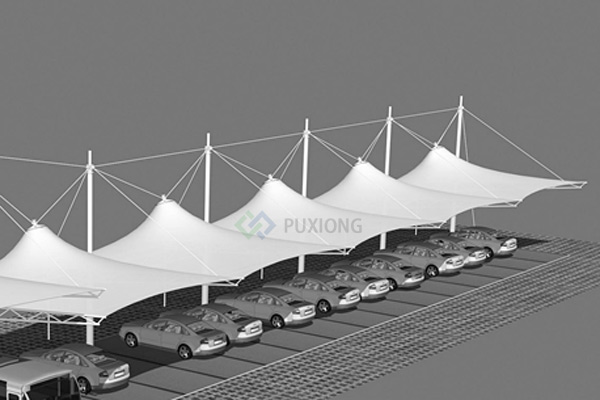

Tensile Structure

Tensile Structure

1) Material: PVC/PVDF/PVF
2) PXMS-C05M can be used to weld similar tensile structure. Like car parking, statium, etc.
Biogas

Biogas

1) Material: PVC/PVDF

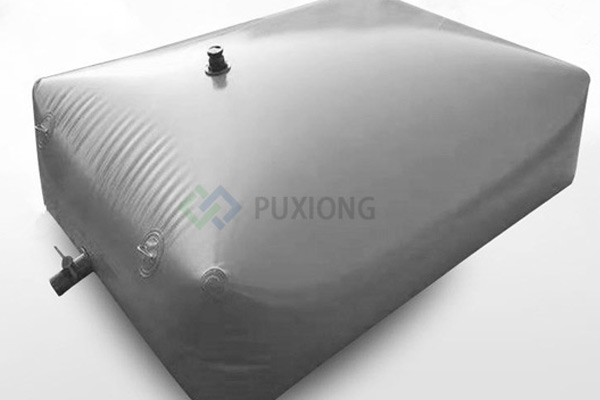

2) PXMS-C05M can be used to weld biogas, water tank, oil tank, etc.

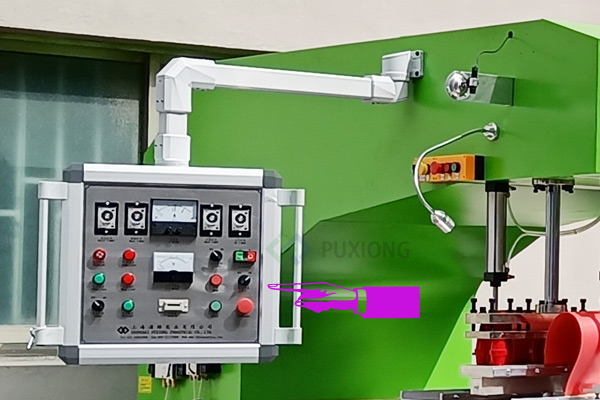

Intelligent Current & Swing Arm Operation Panel

Intelligent Current & Swing Arm Operation Panel

1- The machine can make compensation to welding current automatically.
2. Easy to move.

So operation is more convenient & machine is more stable.

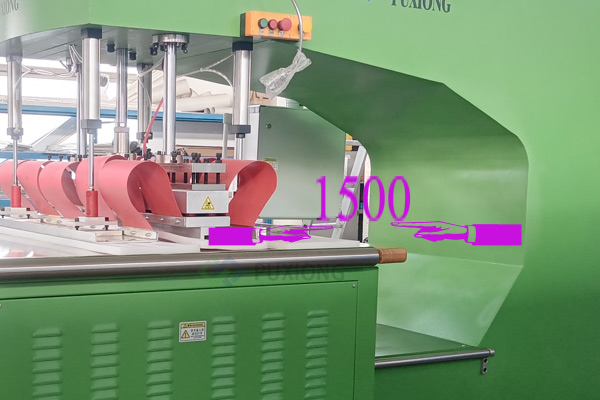

Large Throat Depth (1500mm)

Large Throat Depth (1500mm)

Easy to put and store materials, especially roll materials.

One side, store more materials to save labors. The other side, easier for workers to adjust places, even big place for workers to stand at trough.

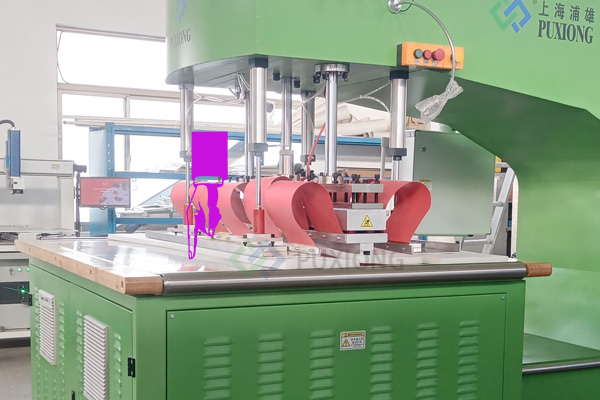

Large Worktable (1350mm*1450mm)

Large Worktable (1350mm*1450mm)

Easy to put materials, especially big materials. Help to fix materials, welding with higher precision.

And for big materials, easiers to move, save labor.
Parameters:

Model

PXMS-C05M

Power

15 KW

Voltage

380V/Customized

Pressure Mode

Pneumatic

Air Pressure

0.6MPa  Adjustable

Oscillating Frequency

27.12MHz±0.5%

Size of Worktable

L1350mm*W1450mm

Throat Depth

1500mm

Groove Height

970 mm

Height of Worktable

1100mm

The Max.Welding Area

33000mm2

Overall Dimension

L3060mm*W1730mm*H2250mm

Weight

2100 KG
