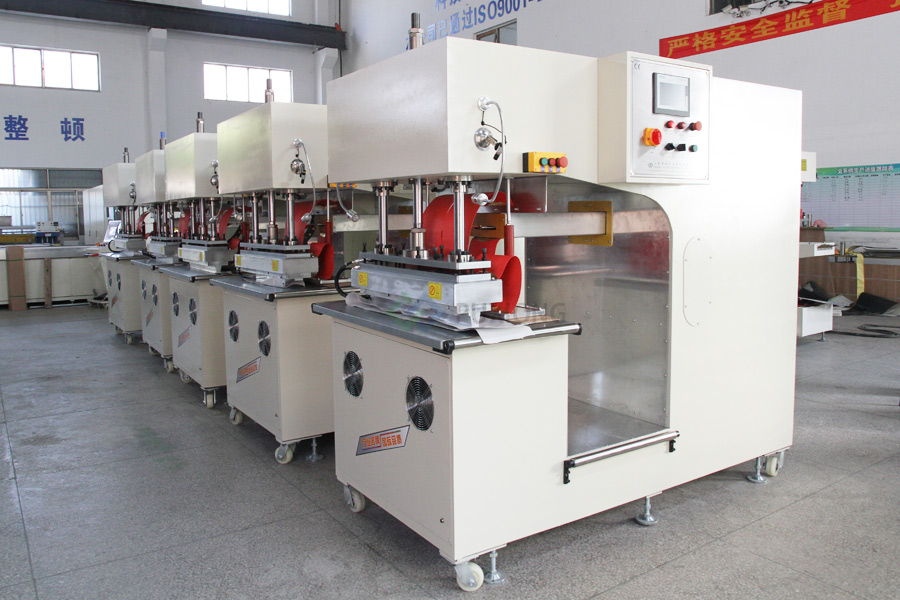

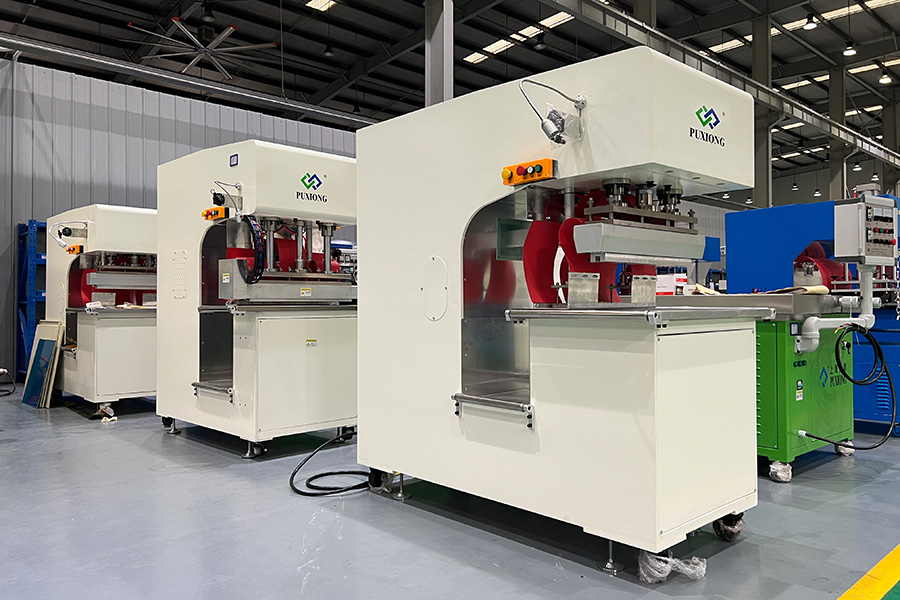

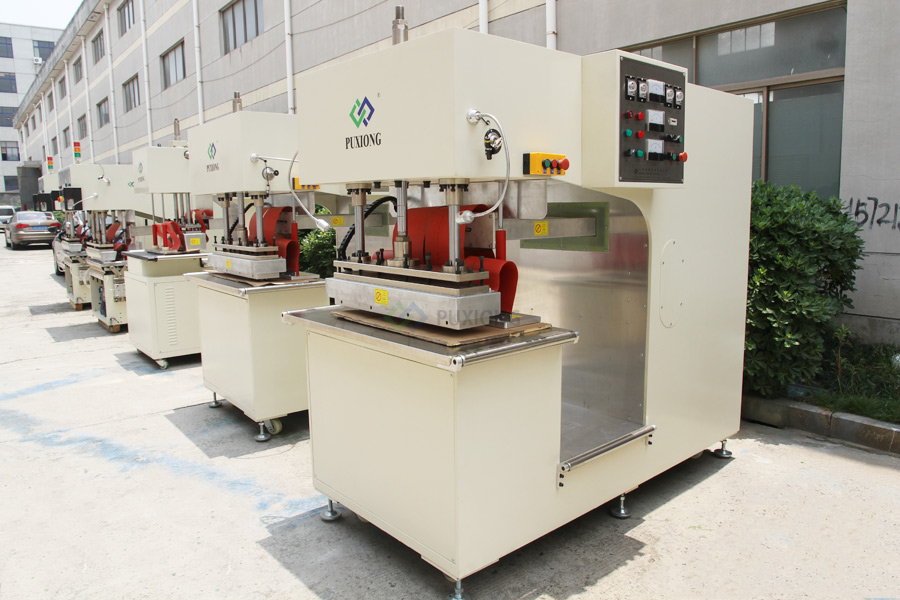

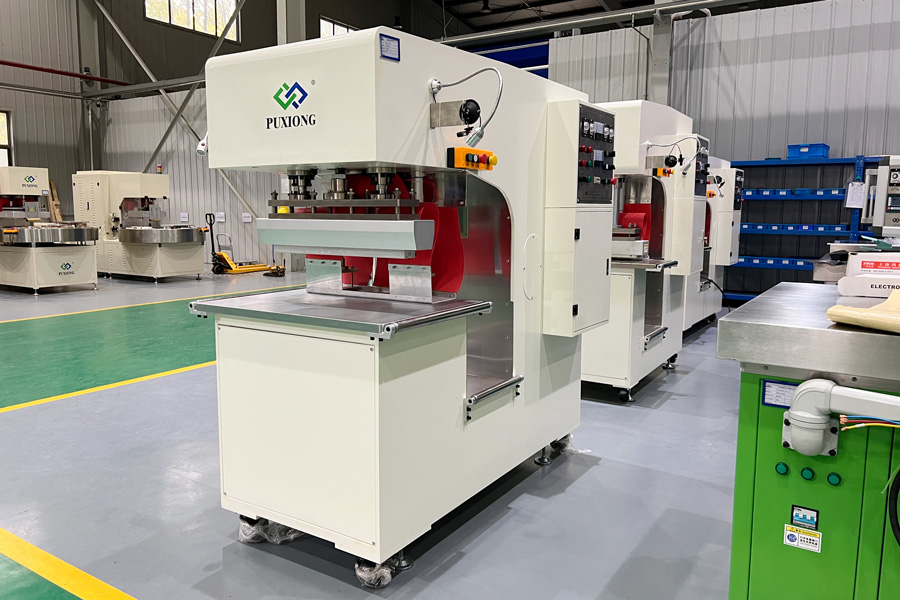

High Frequency Tarpaulin Welding Machine HF/RF PVC Welding Machine, PTFE Welding Machine & ETFE Welding Machine, etc

1) Material: PVC/PVDF/PVF

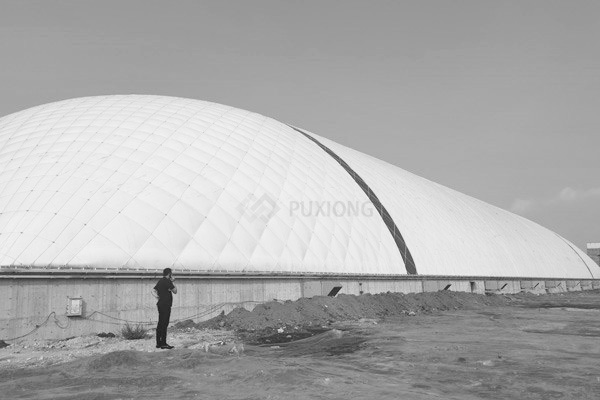

2) PXMS-G05M can be used to weld industrial warehouses, hangars, air-supported halls, storage halls, canopies, circus tents, lightweight hall, etc.

1) Material: PVC/PVDF/PVF

2) PXMS-G05M can be used to weld pvc tarpaulin, light weight tarpaulin, like truck cover, etc.

1) Material: PVC/PVDF/PVF

2) PXMS-G05M can be used to weld related PVC/PVDF/PVF materials for tensile membrane structure.

easier to put materials

So save labor costs and improve production capacity.

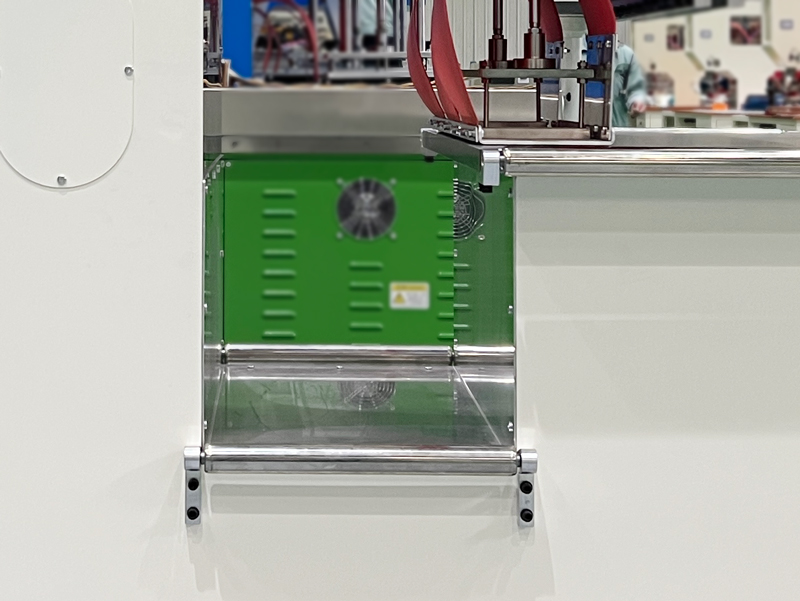

1- help materials' transfering

2- work toghther with smooth worktable to protect materials

So save labor and materials costs accordingly.

1- loose or locking via screws.

2- easy to change and have less requirements to labor.

So save labor costs accordingly.

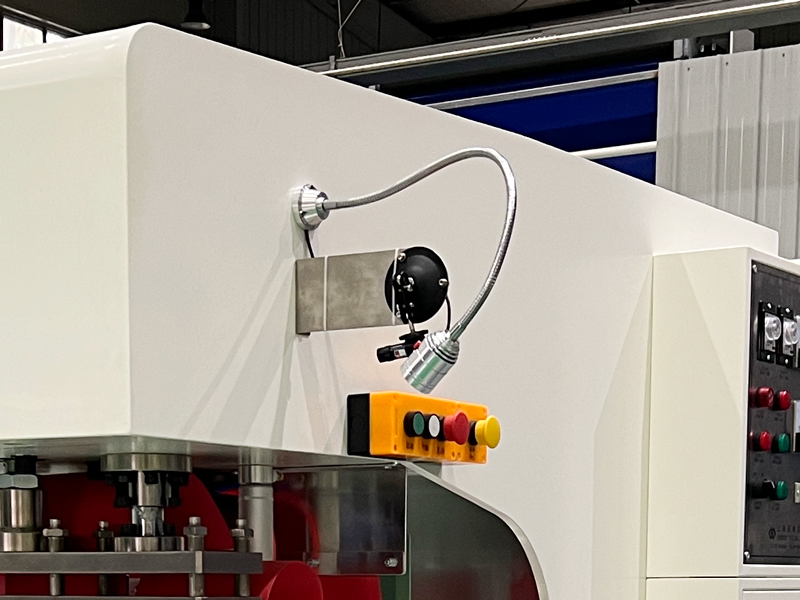

help workers during dark time, save labor costs.

Model	PXMS-G04M/P/C	PXMS-G05M/P/C
Version	M (Mechanical Type); P ( PLC Type ); C ( Computor Type )
Power	12 KW	15 KW
Voltage	Customized
Pressure Mode	Pneumatic
Air Pressure	0.6MPa, Adjustable
Oscillating Frequency	27.12MHz±0.5%
Size of Worktable	L800mm*W540mm	L1200mm*W800mm
Height of Worktable	950mm
Throat Depth	650 mm	750 mm
The Max.Welding Area	20000mm2	33000mm2
Overall Dimension	L1700mmW1010mmH1940mm	L2100mmW1500mmH2100mm
Weight	850 KG	1100 KG
