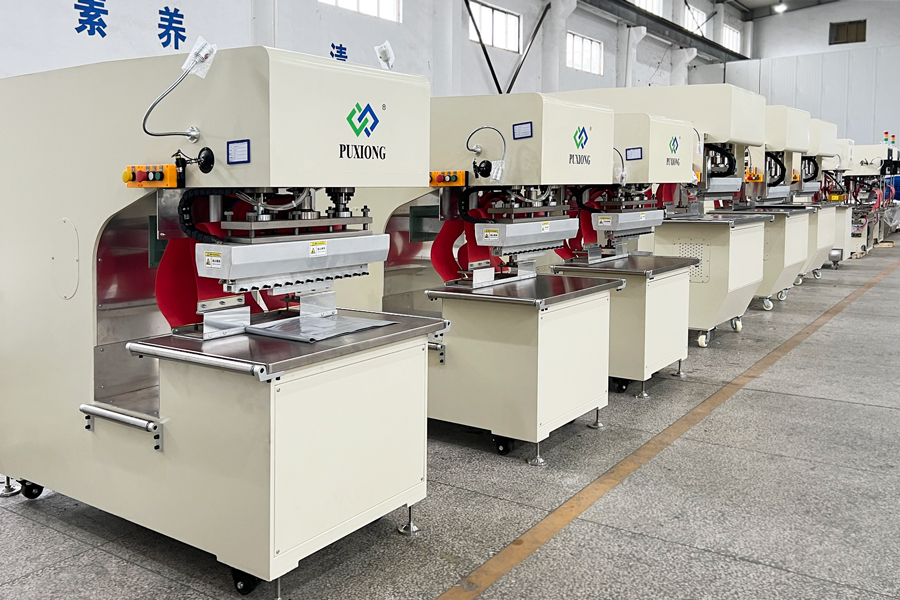

High Frequency PVC Welding Machine

Model: PXMS-G07P

  • high frequency canvas welding machine
  • High frequency pvc canvas, tarpaulin welding machine
  • High Frequency PVC Tent and Canvas Welding Machine
  • High Frequency PVC Fabric Welding Machine for PVC canvas, awning, tarpaulin
  • high frequency canvas welding machine
  • High frequency pvc canvas, tarpaulin welding machine
  • High Frequency PVC Tent and Canvas Welding Machine
  • High Frequency PVC Fabric Welding Machine for PVC canvas, awning, tarpaulin

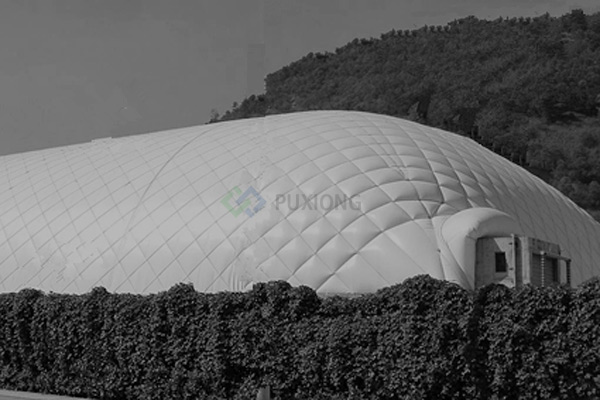

Air Dome

Air Dome

1) Material: PVC/PVDF/PVF
2) PXMS-G07P can be used to weld similar air domes. This kind of structure can be used to make industrial warehouse, workshops, stadium, hangars, etc.

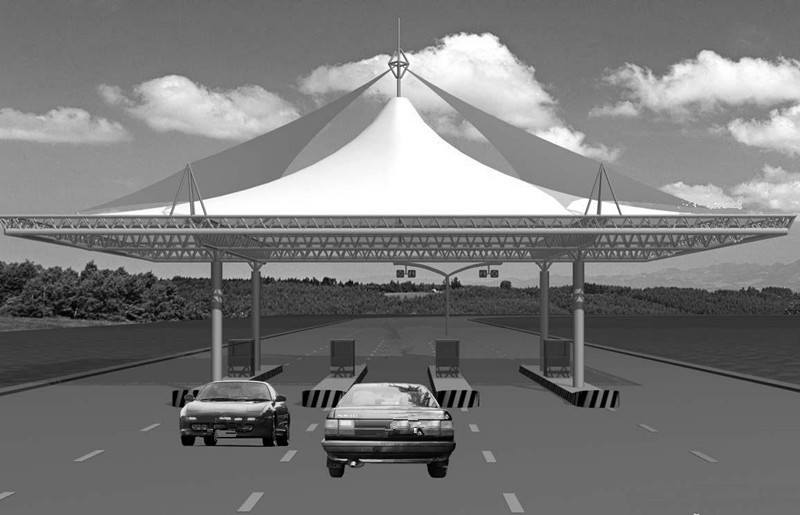

Landscape Shade

Landscape Shade

1) Material: PVC/PVDF/PVF
2) PXMS-G07P can be use to weld PVC/PVDF/PVF fabrics for landscape shade, car parking, sun protection, tent, tarpaulin, etc.
Lightweight Halls and Tent

Lightweight Halls and Tent

1) Material: PVC/PVDF/PVF
2) PXMS-G07P can be used to weld lightweight halls and tents.

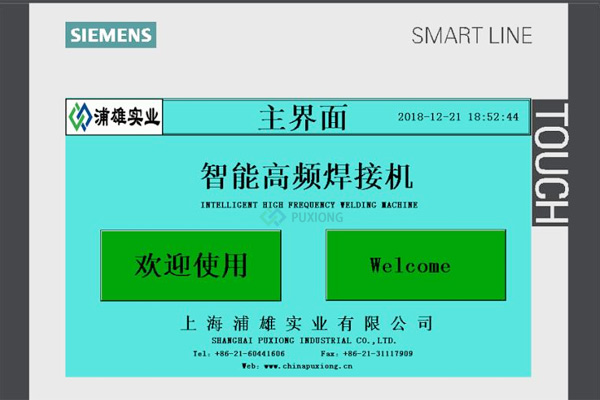

Digital Control System

Digital Control System

1- touch screen to set main parameters directly
2- 3-level management

so all parameters save directly to avoid any mistakes, and ensure datas' safety and products' quality.

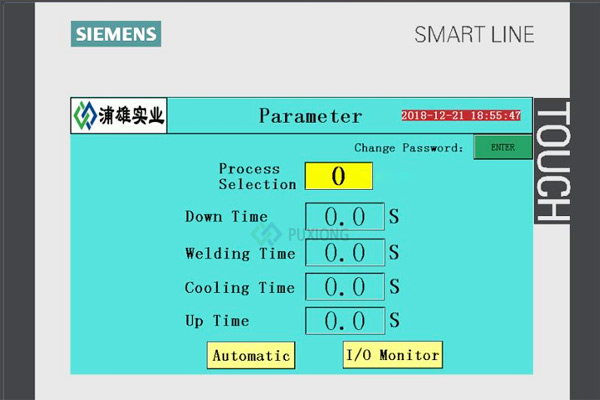

Choose Process No. to Get Related Recipe

Choose Process No. to Get Related Recipe

1- save 20/30 groups recipes directly
2- choose recipe no. to get related parameters

so easy to operate and higher control precision and save time and labor.

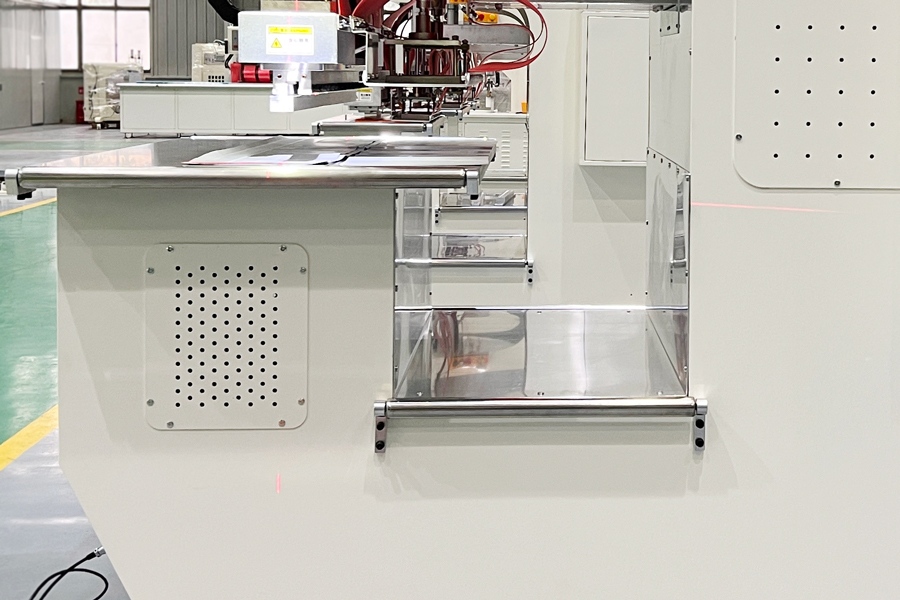

Large Throat Depth (750mm) and Large Worktable ( 1200mm*800mm )

Large Throat Depth (750mm) and Large Worktable ( 1200mm*800mm )

Easy to put materials, and operation is more convenient.

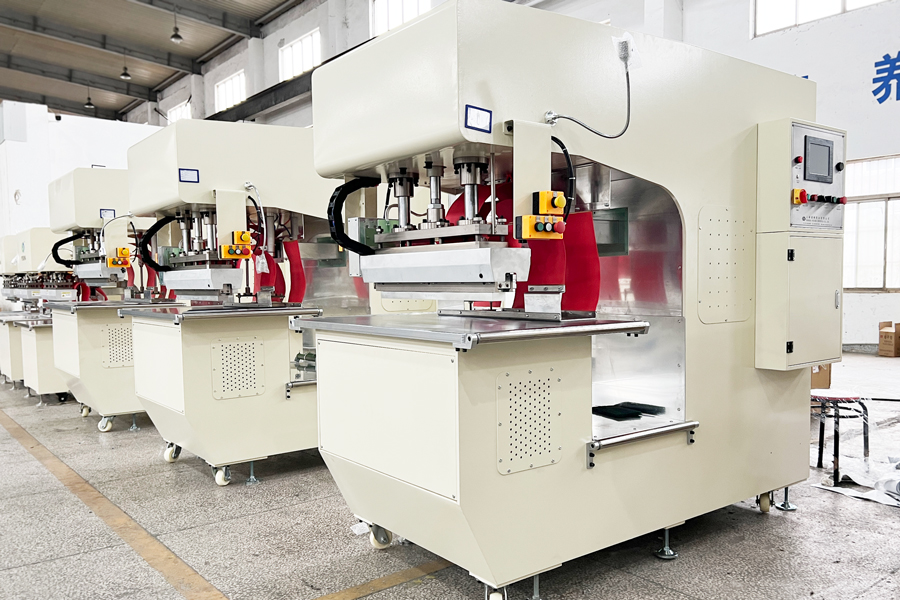

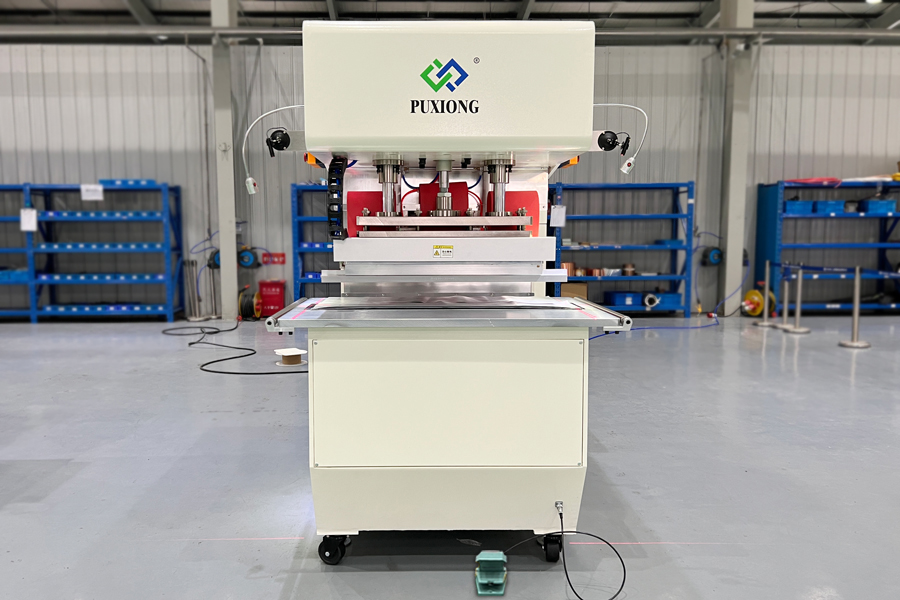

G Type Structure

G Type Structure

smart structure which can save space and transfer costs accordingly

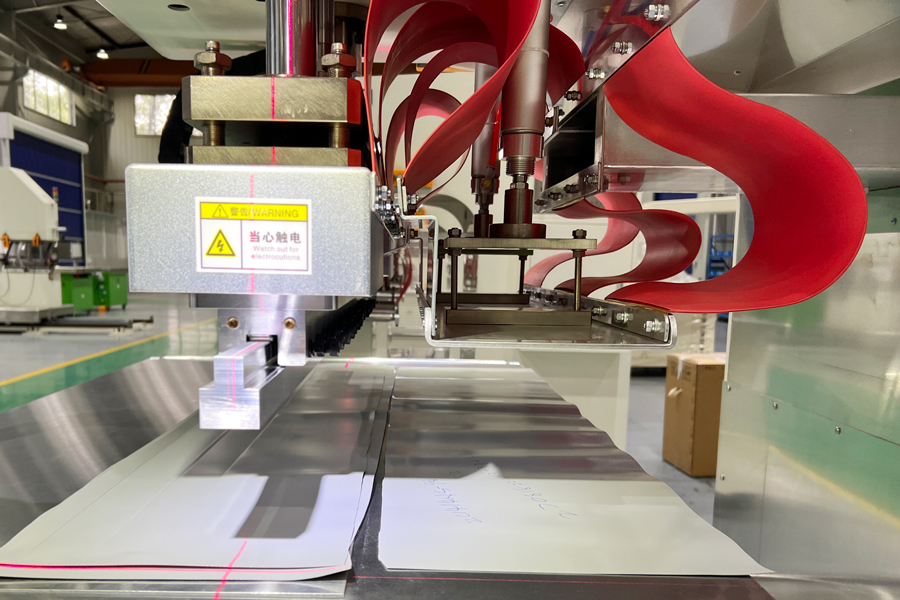

Mould and Locking Way ( screws )

Mould and Locking Way ( screws )

1- loose or locking via screws.
2-  easy to change and have less requirements to labor.

So save labor costs.

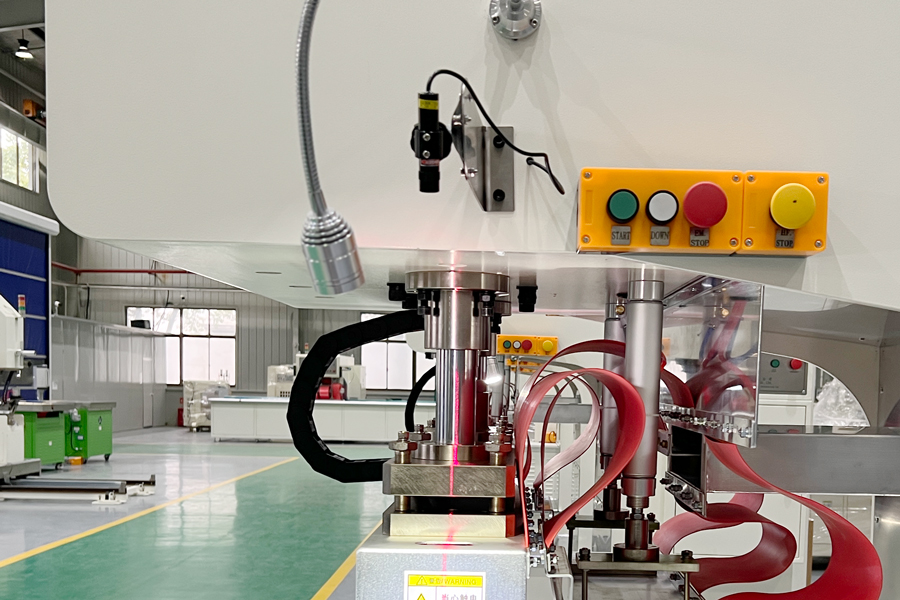

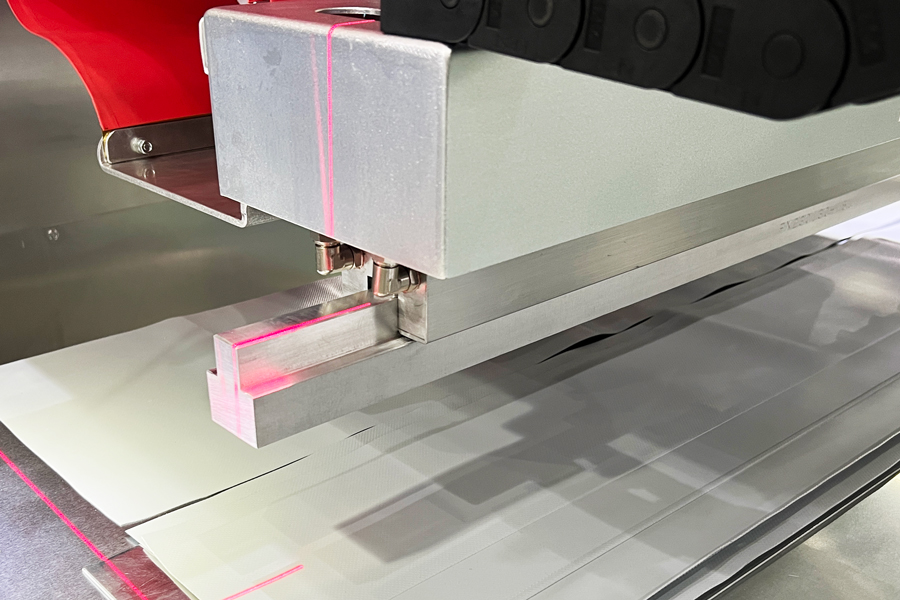

Laser Positioning Device

Laser Positioning Device

1) Both sides with laser positioning device.
2) Help operators positioning welding lines.

So it can help customers get higher precision welding lines.

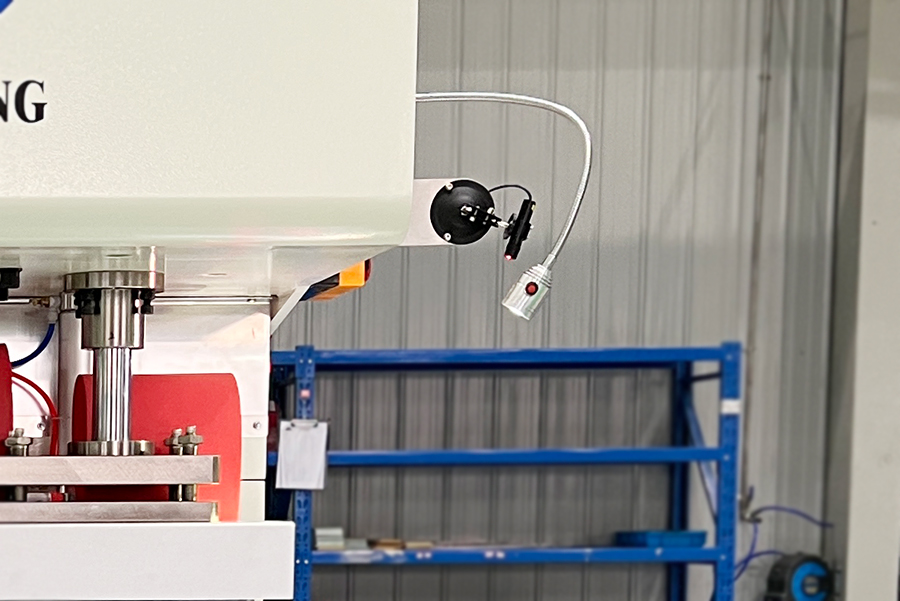

Lamps at sides

Lamps at sides

1) Both sides with lamp.
2) Provide better sight during dark time.

So it can make the worker have better working evenvironment.

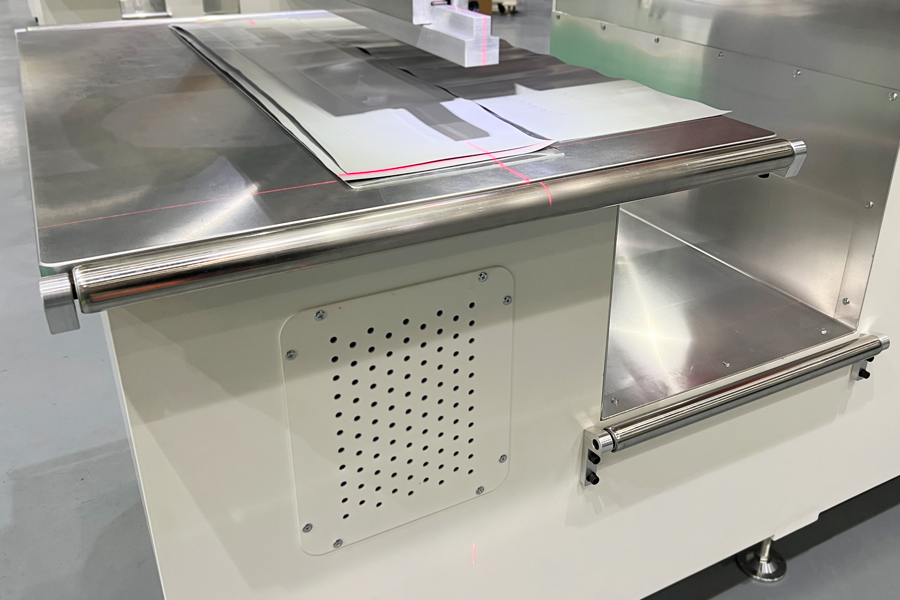

No Power Rollers at sides

No Power Rollers at sides

1- easy for materials' transfering
2- work toghther with smooth wortable, protect materials accordingly

So save labor and materials, save costs.
Parameters:

Model

PXMS-G07P

Power

25 KW

Voltage

Customized

Air Pressure

0.6MPa, Adjustable

Pressure Mode

Pneumatic

Ossillation Frequency

27.12 MHz

Size of Worktable

L1200mm*W800mm

Height of Worktable

950mm

Throat Depth

750 mm

Groove Height

1040 mm

The Max.Welding Area

48000mm2

Overall Dimension

L2100mm*W1500mm*H2100mm

Machine Weight

1300KG
