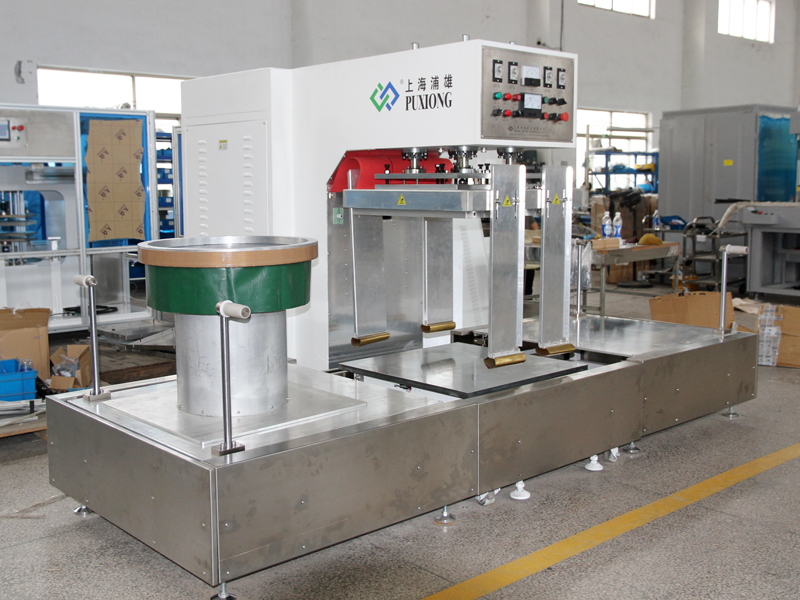

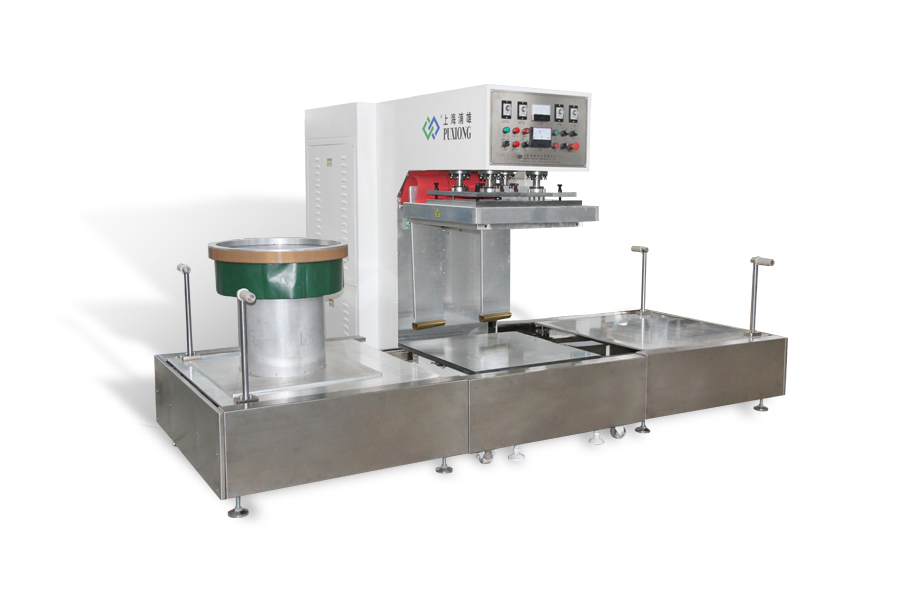

PVC/PU Water Tanks Welder

Model: PXMS-F04M

  • HF PVC/PU Soft Water Storage Tanks Welding Machine
  • Double Slidding Tables, Work Alternatively
  • Collapsible Inflatable Soft Water Storage Tank Welder
  • One-time Forming the Tanks' Bottoms
  • HF PVC/PU Soft Water Storage Tanks Welding Machine
  • Double Slidding Tables, Work Alternatively
  • Collapsible Inflatable Soft Water Storage Tank Welder
  • One-time Forming the Tanks' Bottoms

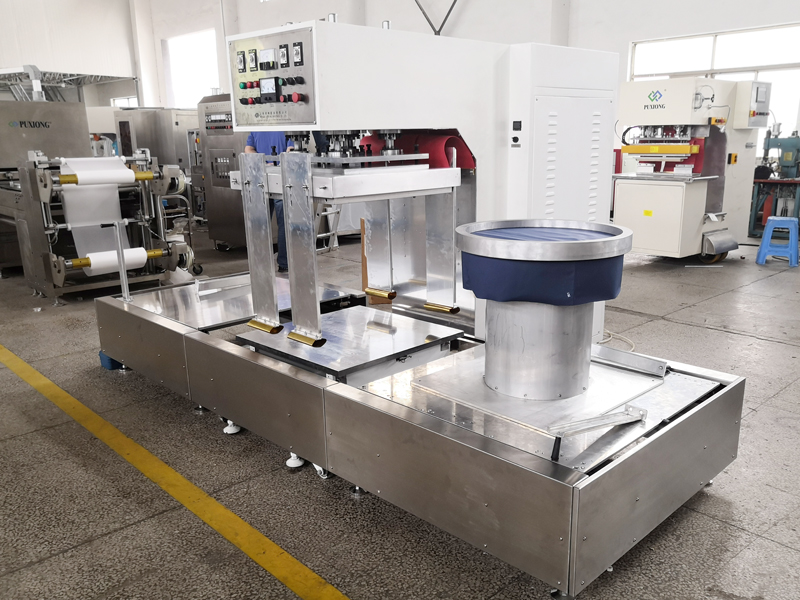

Double Slidding Tables Structure

Double Slidding Tables Structure

When one side is welding, operator can prepare the other side's materials.

As a result, it can improve the production capacity that the machine with higher efficiency accordingly.

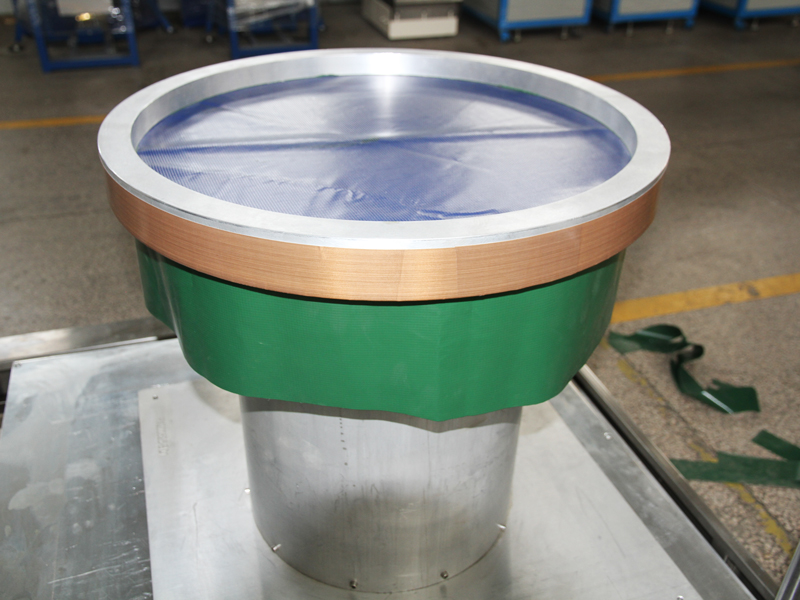

One-time Forming the Tanks' Bottoms

One-time Forming the Tanks' Bottoms

The bottom and the middle tube can be welded toghther directly.

Better welding result, higher welding strength.
Mechanical Type

Mechanical Type

Easy to operate & lower requirements to operators.

So it can save some labor costs accordingly.
Flexible/collapsible Soft Water Storage Tanks

Flexible/collapsible Soft Water Storage Tanks

According to change moulds, one machine can process different ones.

Save investment for customers.
Parameters:

Model

PXMS-F04M

Output Power

15 KW

Power Supply

380V,Customized

Pressure Mode

Pneumatic

Top Electrode Size (mm)

 L700*W700

Overall Dimension (mm)

L3400*W2400*H2100

Weight

800KG
