High Frequency PVC Welding Machine HF/RF PVC Welding Machine, PTFE Welding Machine & ETFE Welding Machine, etc

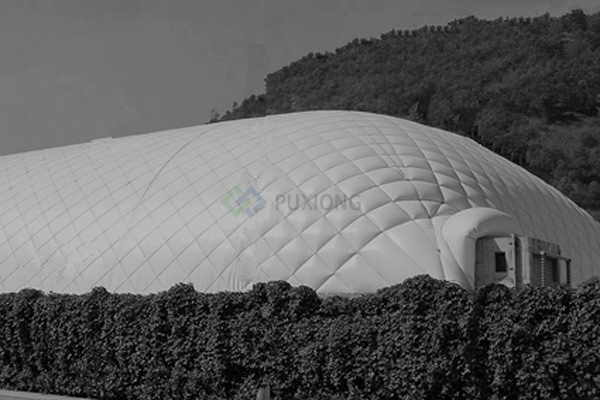

Air Dome

1) Material: PVC/PVDF/PVF

2) PXMS-G05P can be used to weld similar air domes. This kind of structure can be used to make industrial warehouse, workshops, stadium, hangars, etc.

Landscape Shade

1) Material: PVC/PVDF/PVF

2) PXMS-G05P can be use to weld PVC/PVDF/PVF fabrics for landscape shade, car parking, sun protection, tent, tarpaulin, etc.

Lightweight Halls and Tent

1) Material: PVC/PVDF/PVF

2) PXMS-G05P can be used to weld lightweight halls and tents.

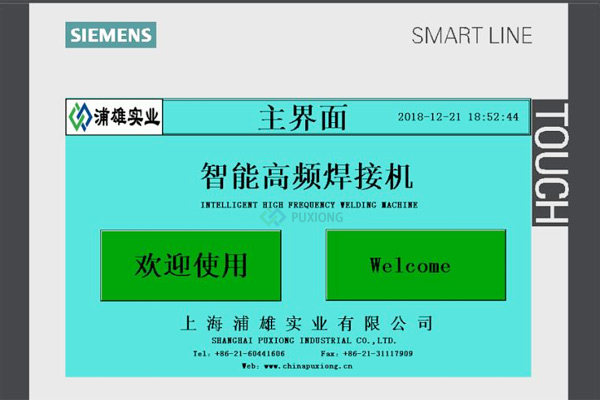

Digital Control System

1- touch screen to set main parameters directly

2- 3-level management

3- save 20/30 groups recipes directly

4- choose recipe no. to get related parameters

so easy to operate and higher control precision and save time and labor. And all parameters save directly to avoid any mistakes, and ensure datas' safety and products' quality.

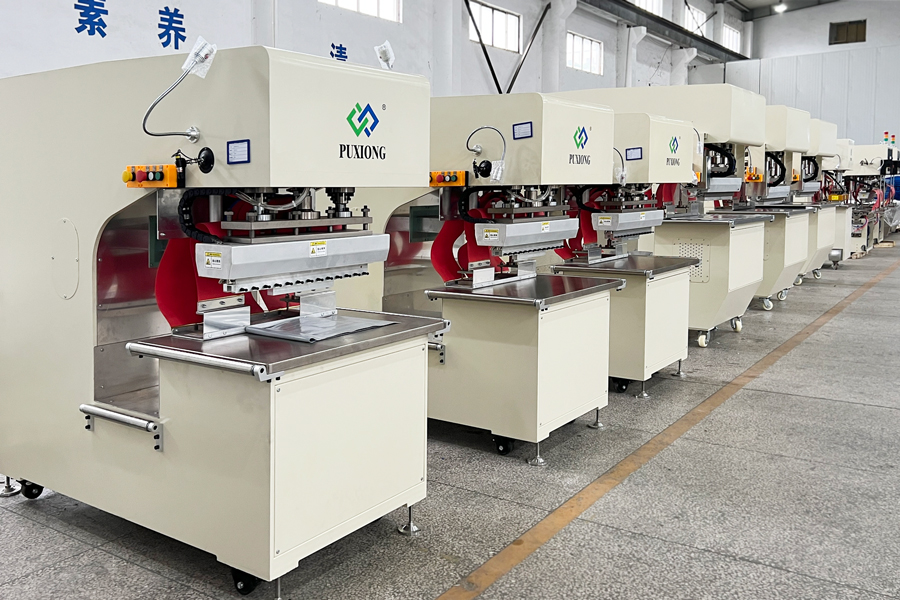

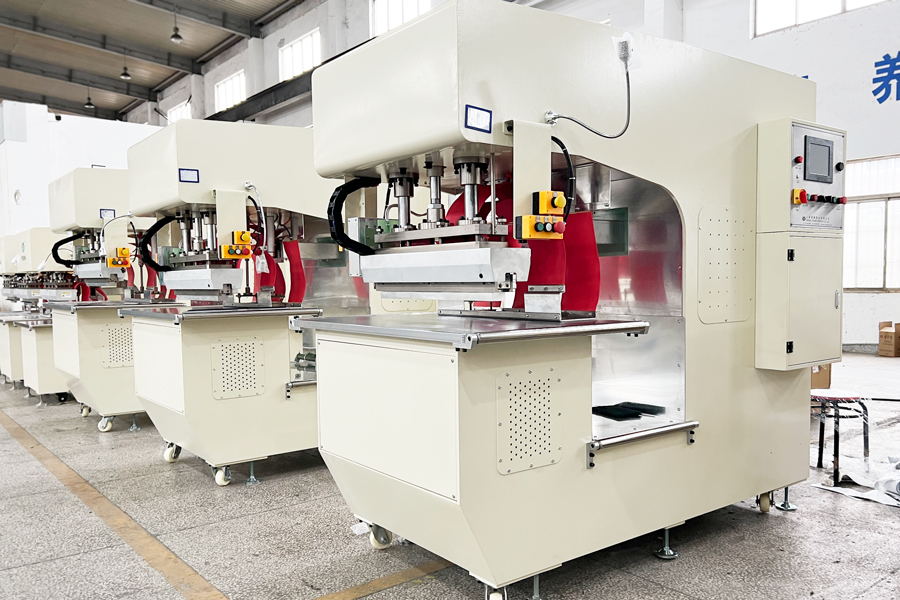

G Type Structure

smart structure which can save space and transfer costs accordingly

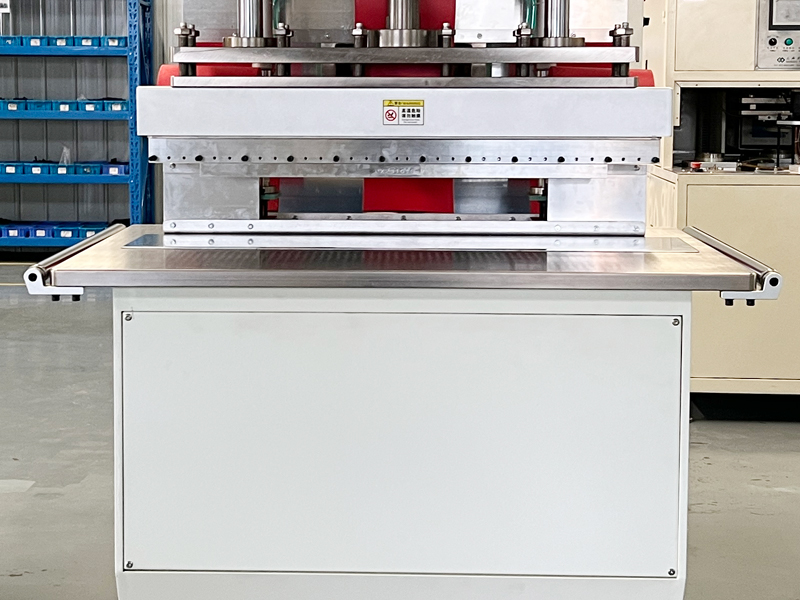

Large Throat Depth (750mm) and Large Worktable ( 1200mm*800mm )

Easy to put materials, and operation is more convenient.

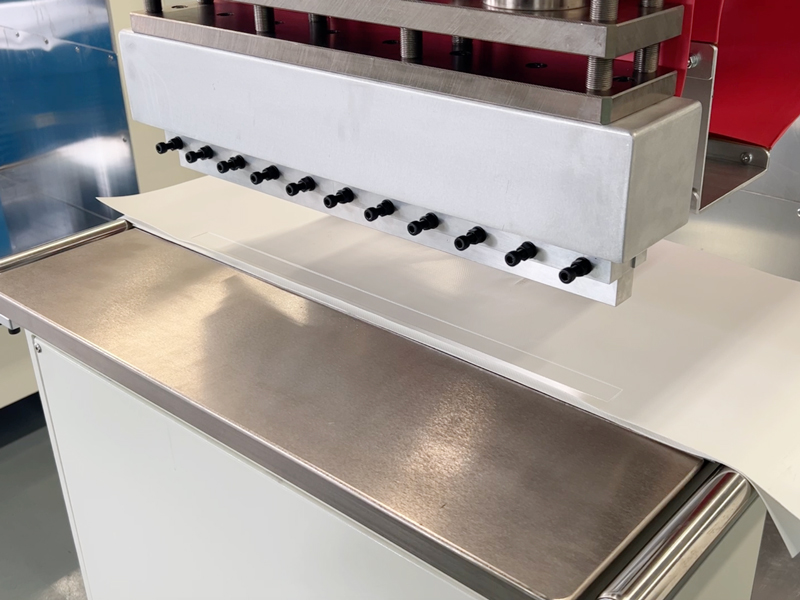

Mould and Locking Way ( screws )

1- loose or locking via screws.

2- easy to change and have less requirements to labor.

So save labor costs.

No Power Rollers at sides

1- easy for materials' transfering

2- work toghther with smooth wortable, protect materials accordingly

So save labor and materials, save costs.

Parameters:

Model	PXMS-G04M/P/C	PXMS-G05M/P/C
Version	M (Mechanical Type); P ( PLC Type ); C ( Computor Type )
Power	12 KW	15 KW
Voltage	Customized
Pressure Mode	Pneumatic
Air Pressure	0.6MPa, Adjustable
Oscillating Frequency	27.12MHz±0.5%
Size of Worktable	L900mm*W550mm	L1200mm*W800mm
Height of Worktable	950mm
Throat Depth	500 mm	750 mm
Groove Height	850mm	1040 mm
The Max.Welding Area	20000mm2	33000mm2
Overall Dimension	L1560mmW900mmH1860mm	L2100mmW1500mmH2100mm
Weight	800 KG	1100 KG
