HF PVC Fabric Welding Machine

Model: PXMS-G05M (s)

  • pvc canvas welding machine
  • truck cover welding machine
  • pvc tarpaulin welding machine
  • double layer biogas welder
  • pvc canvas welding machine
  • truck cover welding machine
  • pvc tarpaulin welding machine
  • double layer biogas welder
G Type Structure

G Type Structure

1- more smart and compact
2- save space

So save labor costs and transfering freight accordingly.
Hot Sale Model

Hot Sale Model

stable and with good reputation

so save costs for customers to compare prices accordingly.

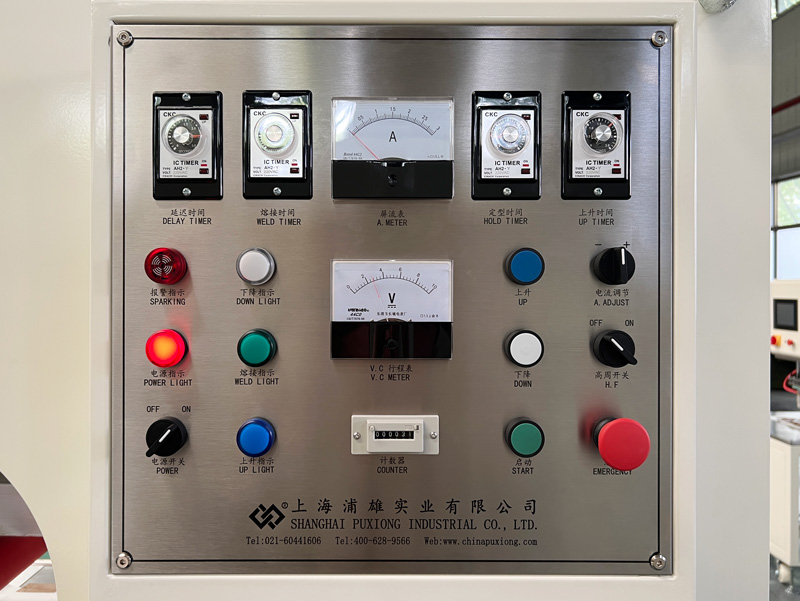

Mechanical Type, Buttons Control

Mechanical Type, Buttons Control

adjust main prameters via buttons, like time, current, pressure, etc

So simple operation, easy to use and low requirements for personnel.
Batch and Standardized Production

Batch and Standardized Production

lower cost and more economical investment.

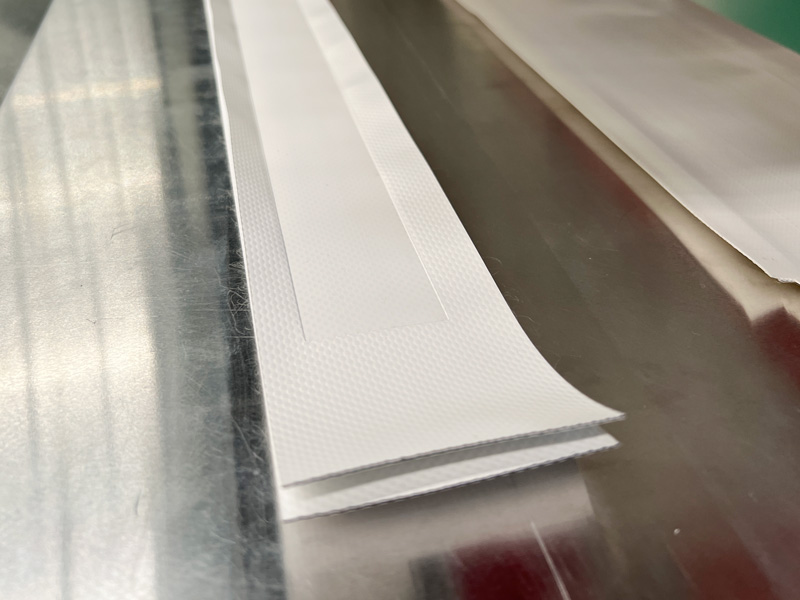

Perfect Welding Result and Larger Welding Area ( 33000mm2)

Perfect Welding Result and Larger Welding Area ( 33000mm2)

1- welding result is perfect and strong
2- weld up to 33000mm2/time, like 1000mm*30mm, 800mm*40mm, etc.

So higher production capacity accordingly.
No Power Rollers at Sides

No Power Rollers at Sides

1- help materials' transfering
2- work toghther with smooth worktable to protect materials

So save labor and materials costs accordingly.


Operate Buttons at Two Sides

Operate Buttons at Two Sides

easier to operate and save time, improve production capacity
Parameters:

Model

PXMS-G05M  (s)

Version

Mechanical

Power

15 KW

Voltage

Customized

Pressure Mode

Pneumatic

Air Pressure

≤0.6Mpa, adjustable

Oscillation Frequency

27.12MHz

The max. welding area

33000mm2

Size of Worktable

L1100mm*W450mm

Throat Size

650mm

Overall Dimension

L1800mm*W1280mm*H2070mm

Weight

1100KG
