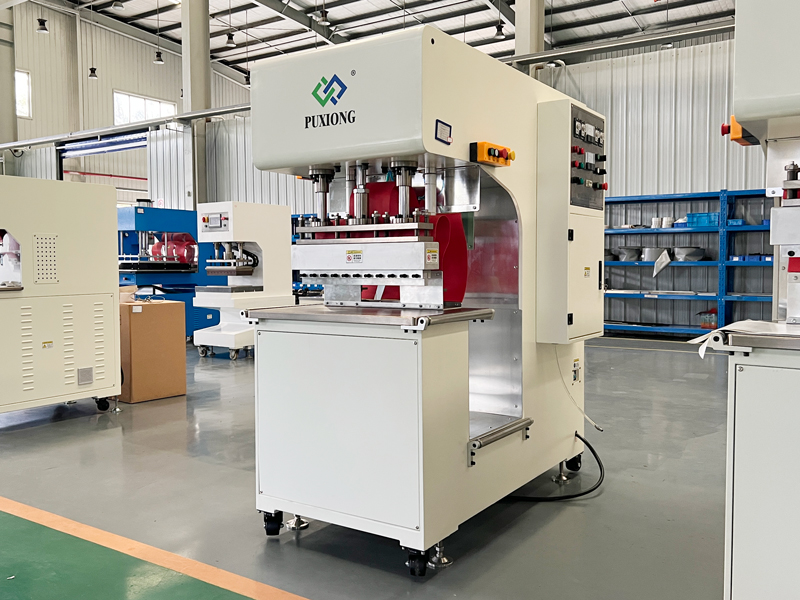

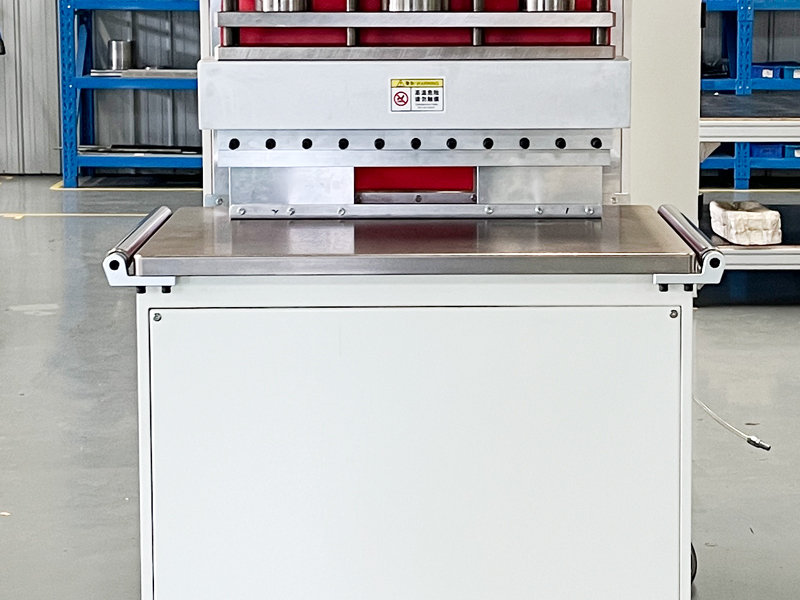

High Frequency Tent Welding Machine

Model: PXMS-G04M

  • pvc fabric welding machine
  • hf welding machine for making tents, tensile structures, tarpaulin
  • high frequency tarpaulin welding machine
  • high frequency pvc tarpaulin welding machine
  • pvc fabric welding machine
  • hf welding machine for making tents, tensile structures, tarpaulin
  • high frequency tarpaulin welding machine
  • high frequency pvc tarpaulin welding machine

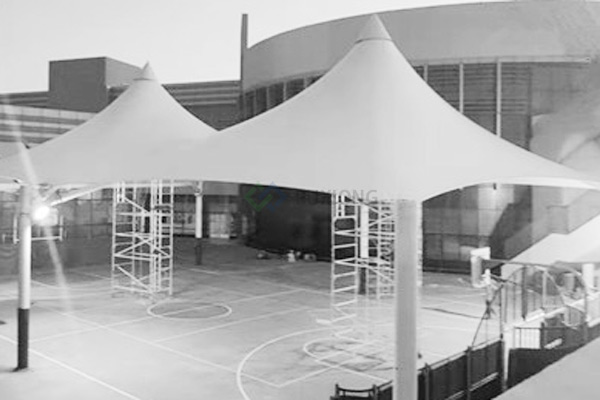

Tensile Structure

Tensile Structure

Materials: PVC/PVDF/PVF
PXMS-G04M can be used to weld similar tensile structures. No matter the structure itself or the round top.
Air Dome

Air Dome

Material: PVC/PVDF/PVF
PXMS-G04M can be used to weld related inflatable/ pneumatic structures.

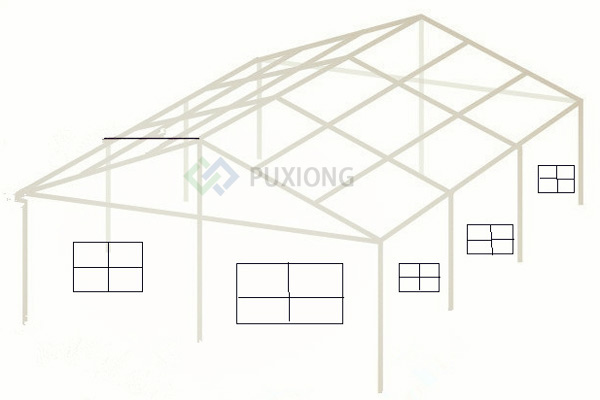

Tent

Tent

Material: PVC/PVDF/PVF
PXMS-G04M can be used to weld tents, tarpaulin, etc.

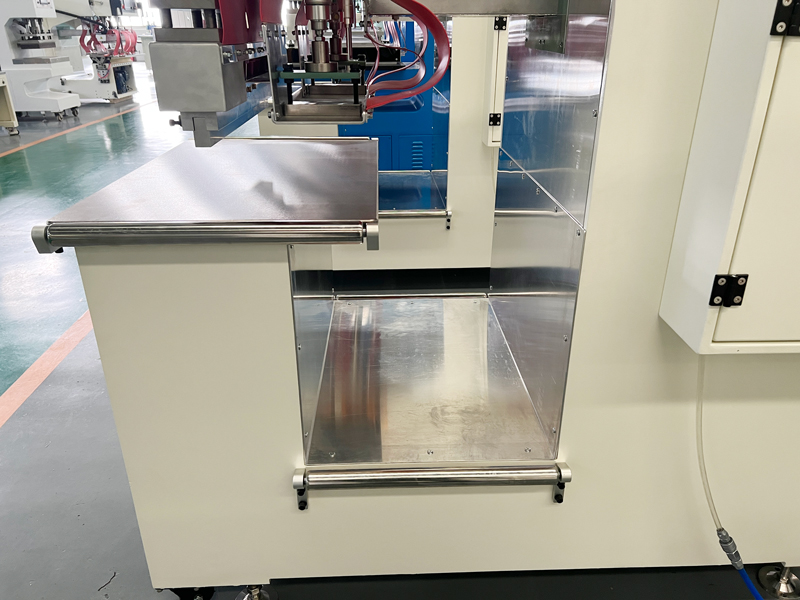

G Type Structure & No Power Rollers

G Type Structure & No Power Rollers

1- more smart and save space
2- help materials' transfering & work toghther with smooth worktable to protect materials

So save labor and materials costs, and save transfering freight accordingly.

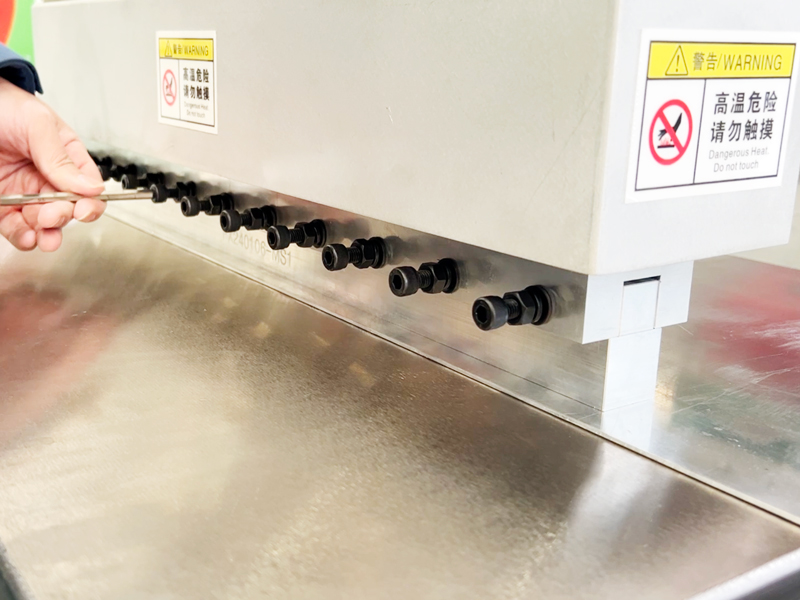

Mould and Locking Way ( screws )

Mould and Locking Way ( screws )

1- loose or locking via screws.
2- easy to change and have less requirements to labor.

So save labor costs accordingly.
Large Throat Depth (650mm) and Large Worktable ( 800mm*540mm )

Large Throat Depth (650mm) and Large Worktable ( 800mm*540mm )

1- easier to put materials
2- easier to operate

So save labor costs and improve production capacity.
Parameters:

Model

PXMS-G04M

Power

12 KW

Version

Mechnical

Pressure Mode

Pneumatic

Air Pressure

0.6MPa, adjustable

Oscillation Frequency

27.12MHz

Worktable Size

800mm*540mm

Throat Depth

650mm

The Max.welding Area

20000mm2

Overall Dimension

L1700mm*W1010mm*H1940mm

Weight

850 KGs
