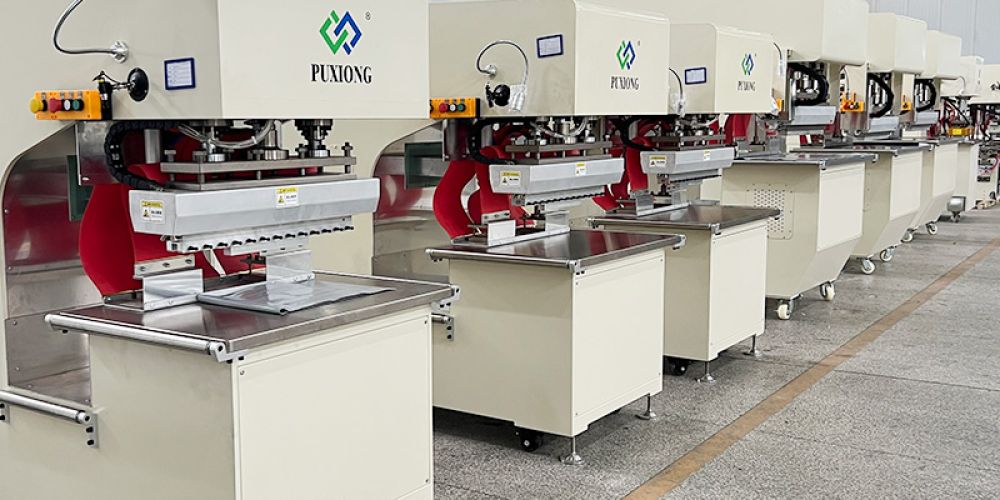

The membrane structure membrane material heat sealing machine is a membrane material welding equipment specially used in the membrane structure industry. The following is a detailed introduction to the membrane structure membrane material heat sealing machine:
The membrane structure membrane material heat sealing machine uses a high-frequency electromagnetic field to cause the molecules inside the membrane material to collide violently with each other to generate high temperature, thereby realizing the welding and welding of the membrane material. Specifically, the equipment uses a high-frequency changing magnetic field between the upper and lower poles to cause the internal molecular movement friction to generate heat, and then with the help of the machine pressure and the matching mold, the membrane material can achieve the effect of welding and shaping.
1.High-frequency oscillation system: The high-frequency oscillation system of the membrane structure membrane material heat sealing machine usually adopts a square coaxial structure to ensure the stability of the high-frequency output power.
2.Spark protection device: The equipment is equipped with a high-frequency spark protection system to prevent damage to the high-frequency welding mold and ensure the safe operation of the equipment.
3.Pressure regulation system: The equipment is equipped with a pressure regulation system, which can adjust the pressure during welding according to the thickness of the membrane material and the heating temperature and other conditions to ensure the welding quality.
4.Positioning system: Some membrane structure membrane material heat sealing machines can be equipped with positioning system configurations to facilitate positioning each time welding, improve welding accuracy and efficiency.

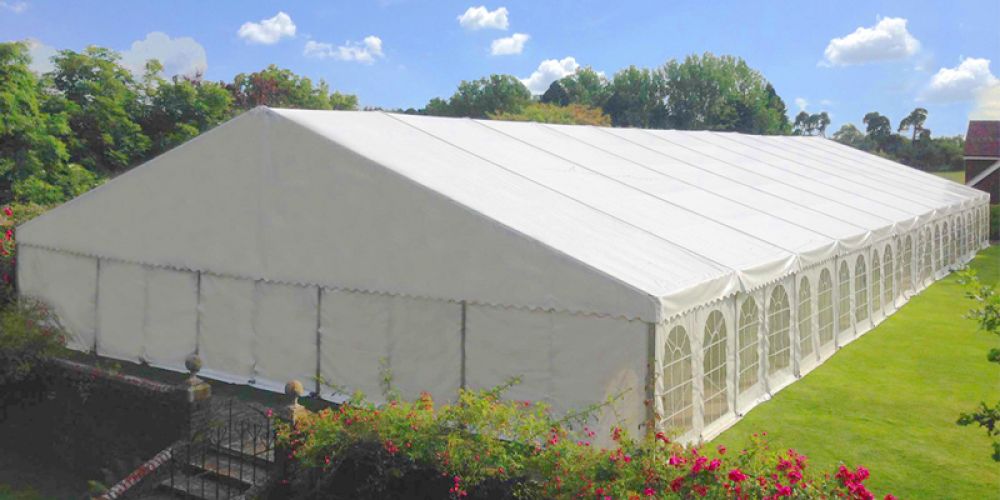

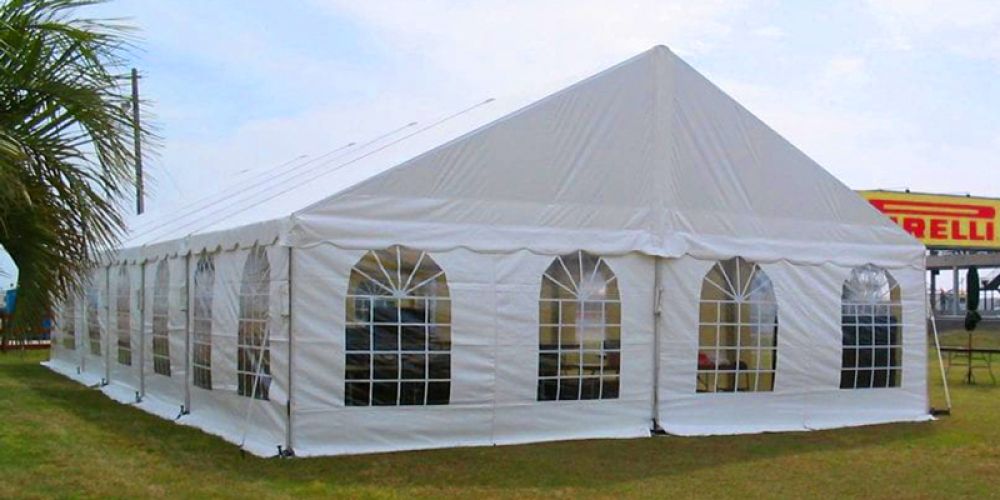

Membrane structure membrane material heat sealing machines are widely used in outdoor membrane structures, tents, awnings, tension membranes, cable membranes, PVC coated cloth welding, membrane structure splicing, advertising inkjet cloth welding and other fields. It is particularly suitable for the heat sealing production of membrane materials such as PVC, PTFE, ETFE, and can meet the welding needs of membrane structures of different shapes and sizes.
1.Single-head and multi-head equipment: According to production needs, membrane structure membrane material heat sealing machines can be divided into single-head and multi-head equipment. Single-head equipment is suitable for small batch and multi-variety production; while multi-head equipment is suitable for large batch and continuous production.
2.Automatic and manual equipment: Membrane structure membrane material heat sealing machines can also be divided into automatic and manual types. Automatic equipment is equipped with an intelligent PLC human-machine interface operating system, stepper or servo motor drive, which can realize automatic walking and seam completion at one time, improving production efficiency; manual equipment requires manual operation and is suitable for welding small-scale or special-shaped membrane structures.
1.Precautions for use:
。Before using the membrane structure membrane material heat sealing machine, the equipment needs to be inspected and debugged to ensure that the equipment is in good working condition.
。The operator needs to be familiar with the operating specifications and safety precautions of the equipment to ensure the correct and safe use of the equipment.
。During the welding process, it is necessary to adjust the frequency, power, pressure and other parameters of the equipment according to the characteristics of the membrane material and the welding requirements.
2.Maintenance:
。Regularly maintain the equipment, including cleaning, lubrication, inspection, etc., to ensure the normal operation of the equipment and extend its service life.
。Pay attention to keeping the equipment dry and clean to avoid dust, oil and other impurities affecting the performance of the equipment and welding quality.
With the continuous development of the membrane structure market and the continuous expansion of the scope of application, the market demand for membrane structure membrane material heat sealing machines is also increasing. In the future, with the advancement of science and technology and the continuous emergence of new membrane materials, membrane structure membrane material heat sealing machines will develop in the direction of more efficiency, intelligence and environmental protection. At the same time, equipment manufacturers will continue to optimize the performance and functions of the equipment to meet the changing needs of the market.
In summary, the membrane structure membrane material heat sealing machine is one of the indispensable and important equipment in the membrane structure industry. With its efficient, precise and stable welding performance, it provides strong support for the production and installation of membrane structures.
